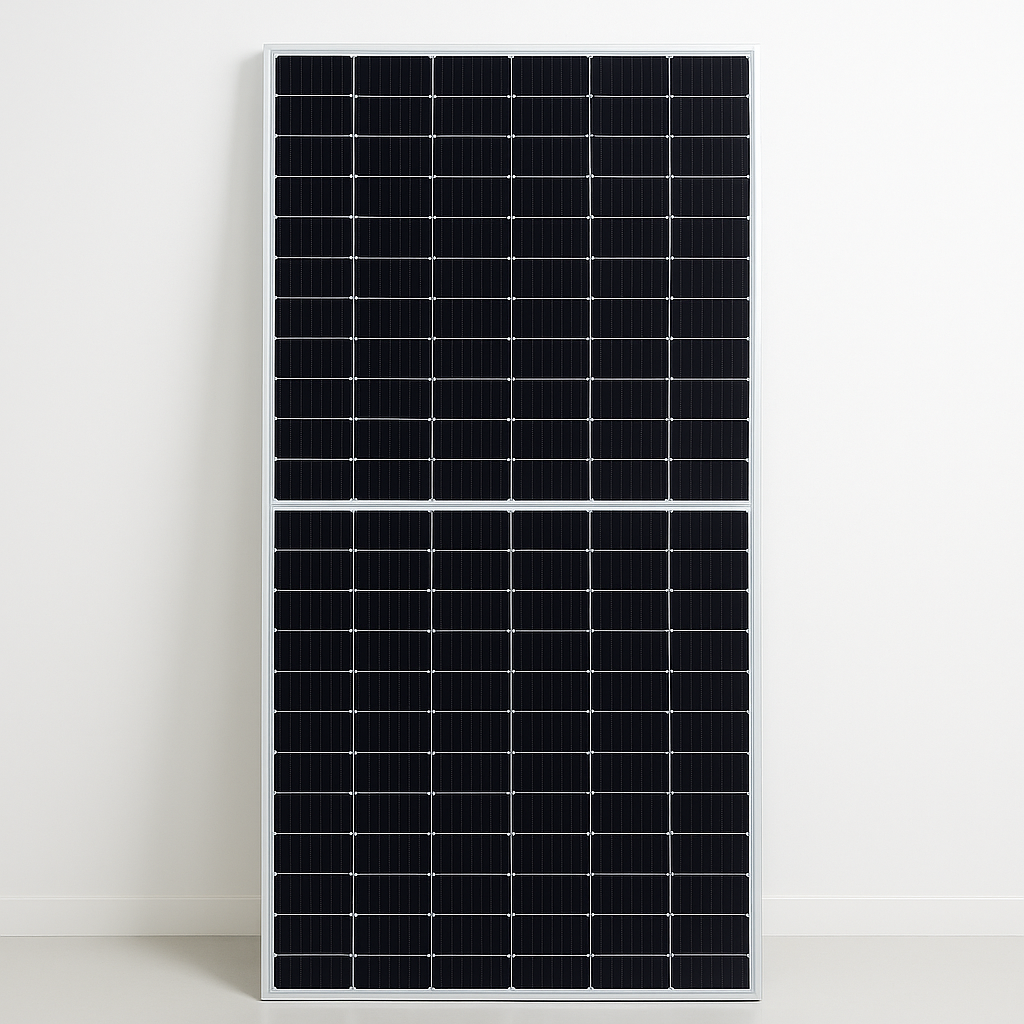

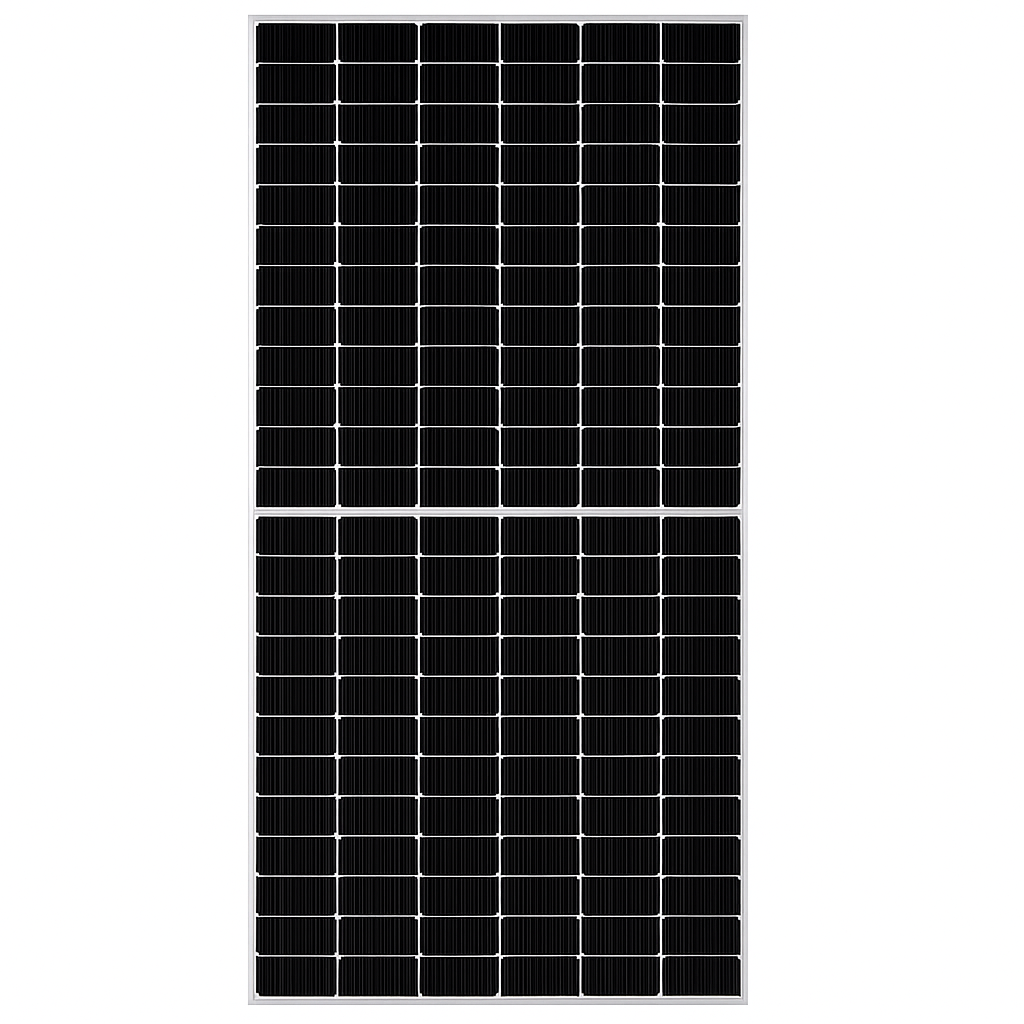

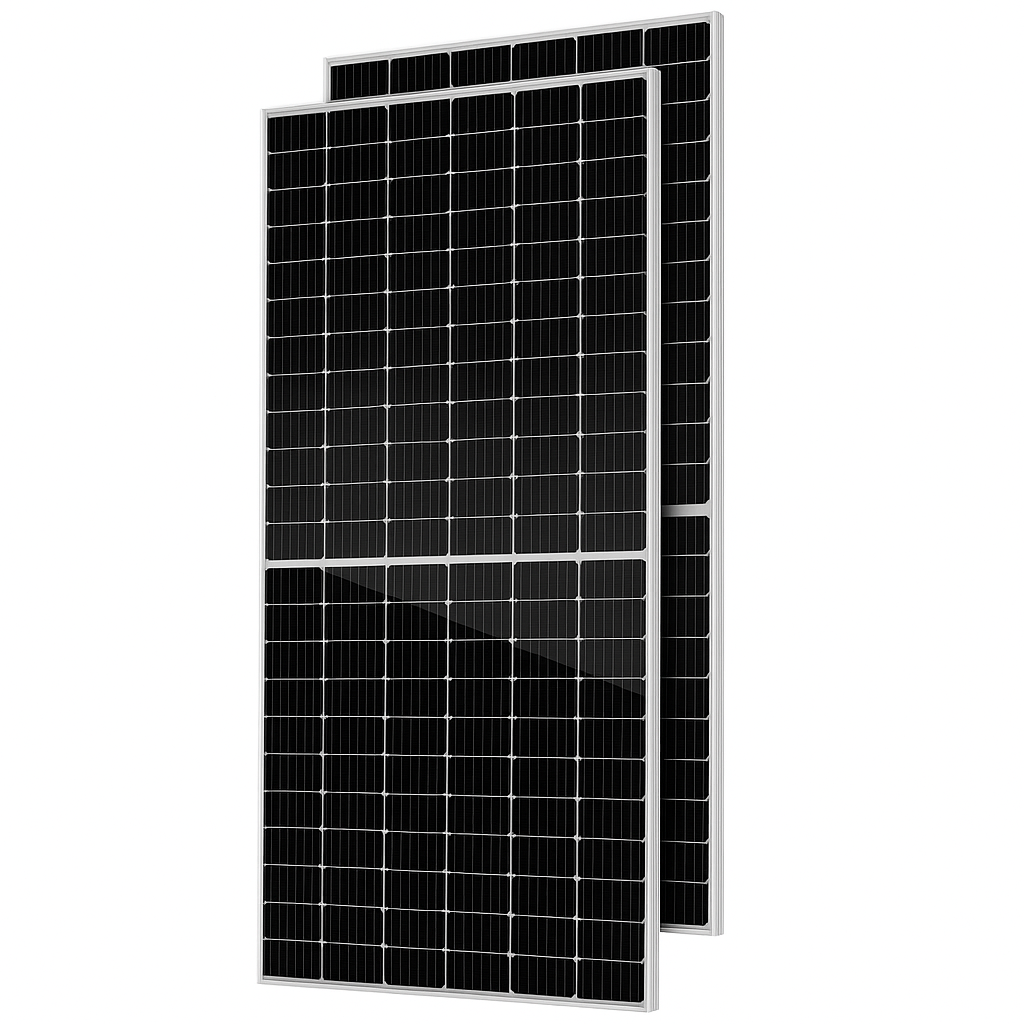

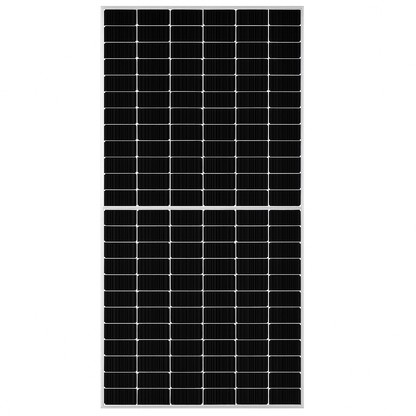

HeliosForge NovaMax 440W Monocrystalline Solar Panel

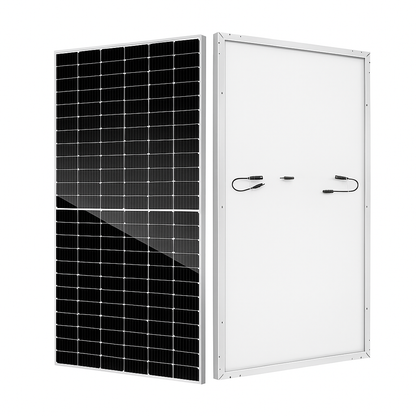

The HeliosForge NovaMax 440W Monocrystalline Solar Panel is engineered for premium residential and commercial arrays. Featuring all-black half-cut mono cells beneath 3.2 mm tempered glass and an anodized aluminum frame, it pairs striking aesthetics with rugged durability. A rear junction box with factory-fitted MC4-style leads ensures fast, secure integration with modern string inverters.

Specifications

• Material: 3.2 mm AR-coated tempered glass, anodized aluminum frame, white backsheet

• Dimensions: 1722 mm (L) x 1134 mm (W) x 35 mm (H); 22.0 kg

• Cell Configuration: 144 half-cut monocrystalline PERC, 10-busbar layout

• Electrical Output: 440 W (Vmp 41.2 V, Imp 10.68 A; Voc 49.5 V, Isc 11.3 A)

• Connections: IP68 junction box, MC4-compatible connectors, 1200 mm leads

Features

• High Module Efficiency: Up to 21.6% for maximum energy density on limited roof space

• Half-Cut, Low-Loss Design: Reduced resistive losses and improved shade tolerance with parallel strings

• Rugged Build: Wind 2400 Pa and snow 5400 Pa load ratings for harsh climates

• AR Glass & Self-Cleaning: Anti-reflective, hydrophobic surface improves low-light performance

• PID/LeTID Resistant: Advanced encapsulants and cell processes maintain long-term output

• Rapid Installation: Pre-drilled frame, ground lugs, and MC4 leads for quick mounting and wiring

Maintenance

• Daily: Monitor inverter/app production; clear new debris if present

• Weekly: Rinse glass with low-mineral water as needed; inspect visible wiring

• Annually: Check mounting torque, verify open-circuit voltage/current, and clean thoroughly

Warranty

• Product Warranty: 15 years against materials and workmanship defects

• Power Output: 25-year linear guarantee (≥84% at year 25)
